High-capacity waste containers

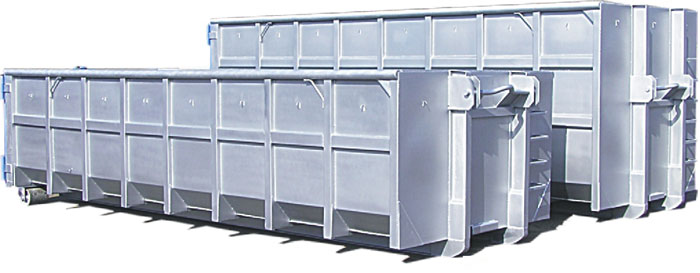

Abroll container made ​​accordingly to DIN 30722

Description:

Intended for collection and transportation of industrial, municipal and heavy waste. Manufactured in accordance with DIN 30 722 - 1570mm hook height placement.

Internal dimensions:

• Length: 4.5 m, 5.00 m, 5.50 m, 6.00 m, 6.50 m or 7.00 m
• Width: 2.30 m
• Height: 0.75 m, 1.00 m, 1.25 m, 1.50 m, 1.75 m, 2.00 m, 2.25 m or 2.40 m

Description:

• Other dimensions - optionally
• Weld running to the frame
• Bottom made ​​of 5 mm metal sheet thick
• Walls and doors made of 3 mm metal sheet thick
• Other metal sheet thickness - optionally
• Painted in any RAL colour

Additional equipment:

• Roll canvas
• Swivelled inner baffle
• Lifting roof
• Others - optional

Length (mm)	Height (mm)
	750		1000	1250	1500	1750	2000	2250	2400
4500	C a p a c i t y	7,6 m³	10,2m³	12,8m³	15,4m³	18,0m³	20,5m³	23,1m³	24,7m³
5000		8,5m³	11,3m³	14,2m³	17,1m³	20,0m³	22,9m³	25,7m³	27,4m³
5500		9,3m³	12,5m³	15,6m³	18,8m³	22,0m³	25,1m³	28,3m³	30,2m³
6000		10,2m³	13,6m³	17,1m³	20,5m³	24,0m³	27,4m³	30,9m³	33,0m³
6500		11,0m³	14,8m³	18,5m³	22,2m³	26,0m³	29,7m³	33,4m³	35,7m³
7000		12,0m³	16,0m³	20,1m³	24,1m³	28,2m³	32,2m³	36,2m³	38,6m³
